Spherical rollers

Spherical rollers

Rollers in the shape of a barrel

Spherical rollers

Size

icon

Outer diameter (mm) 4-30
Length of roller (mm) 5.5-40
Outer Radius of curvature for outer diameter(R2) (mm) 10-184

※Requests for anything exceeding the stated size can be considered.

Main use of the roller

Industrial machines

Construction machinery, elevators, wind powered generators etc.

Manufacturing process flowchart

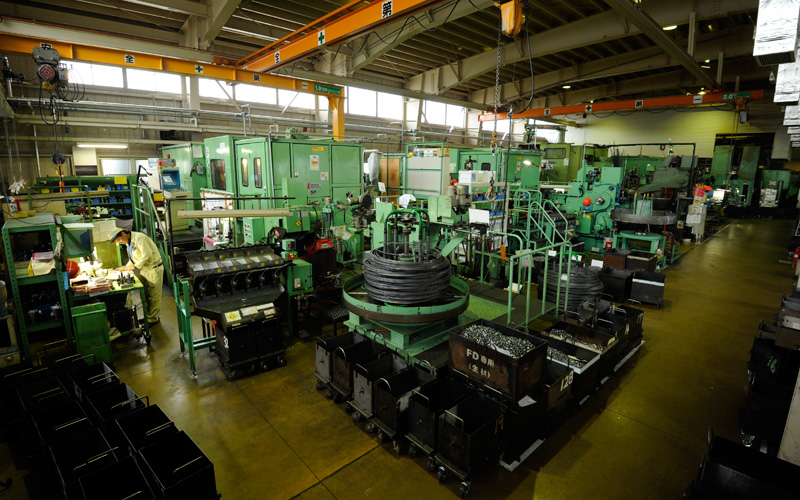

forging Cold
forging
Enlarge image
Heat treatment Heat treatment
Enlarge image
Outer diameter
rough grinding
End face
grinding
Grinding of the
outer diameter
Outer diameter
finish grinding
Barrel
polishing
Inspection Inspection
Enlarge image
Packaging Packaging
Enlarge image
Shipping

※The above flowchart is a typical example.
